PIM+
For protection near the surface.
Forms a permanent, breathable internal seal. A choice for coloured concrete, exposed aggregate and priming before compatible coatings.
Penetrates up to 2 mm
Explore PIM+Thanks for visiting us at
Canada’s Outdoor Farm Show.
–Woodstock, Ontario
Missed us at the show? Hard-working concrete still deserves a protection plan. Discover the system with ProGuard Solutions Co.
Protection from
the inside out.
Concrete looks solid. Inside, it has microscopic pores. Treat them with PIM+ or PIM+ Type S, then protect the surface with PTS+.
Explore the treatments
Built around the way
you farm.
Start with the surface and what it faces every day. Bring your concrete questions to ProGuard.
- Barn floors & livestock alleys
- Discuss daily traffic, moisture, wear and existing coatings.
- Milking parlours & wash-down areas
- Share your cleaning products, wash-down routine and time available for application.
- Silage & feed areas
- Review exposure, concrete condition and preparation before choosing a treatment.
Preserve the concrete.
Simplify the upkeep.
Water and salts can travel through concrete’s pores. Protecting it starts within.
DynaCrete pairs a permanent internal treatment with an easy-clean surface finish. One protects within the concrete. The other helps you deal with what lands on it.
Start with protection within.
Choose PIM+ or PIM+ Type S. You do not need both.
PIM+ Type S
For concrete exposed to heavier wear.
Travels farther into the pores to form a permanent internal seal. Choose Type S when your project calls for deeper penetration.
Penetrates 6 mm or more
Explore PIM+ Type SThe right choice depends on your concrete, its condition and its exposure. Let us help you choose.
PTS+.
Make spills easier to deal with.
Internal protection does not make concrete stain-proof. PTS+ adds a clear, non-glossy surface finish that helps liquids bead on top and makes everyday spills easier to clean.
- Water-repellent surface
- Original colour and texture
- Applied after the internal treatment cures

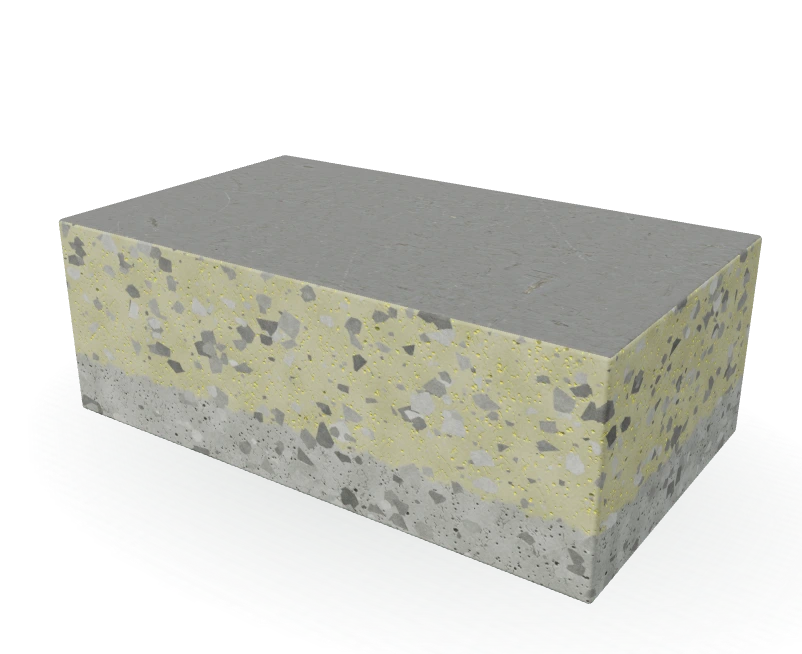

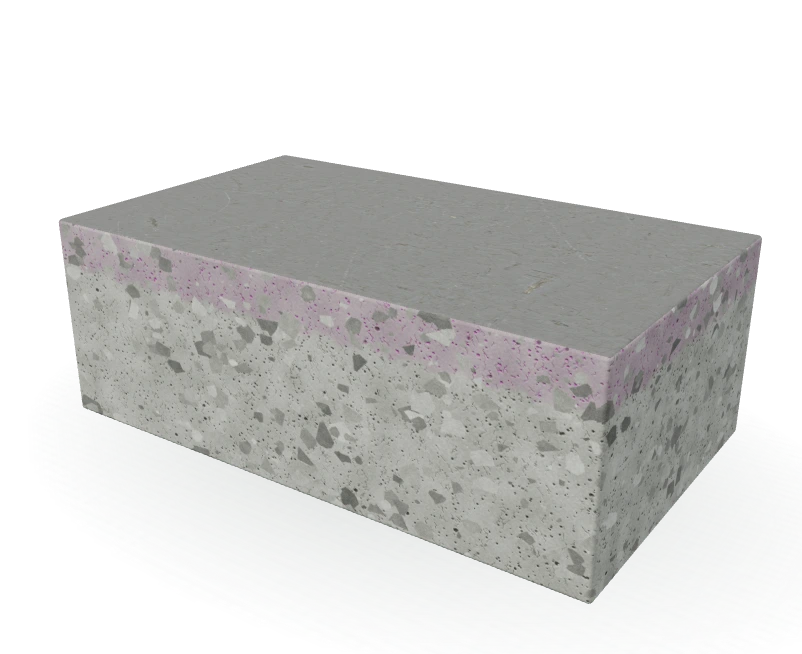

About the illustration and penetration depths
Pore sizes, treatment colours and depths are exaggerated to explain the process. Published penetration: PIM+ up to 2 mm (technical data sheet); PIM+ Type S 6 mm or more (product page). Actual penetration depends on the concrete and application. PTS+ is shown as a surface topcoat; the blue tint is illustrative.
Preparation makes
the difference.
Read the application guide Prepare the concrete.
Repair visible cracks and remove anything that prevents absorption. Confirm the surface is suitable with a small test area.
Treat within. Let it cure.
Apply PIM+ or Type S as directed. Allow at least three days for the internal treatment to cure before PTS+.
Finish at the surface.
Apply PTS+ to a cool, dry surface, following its instructions. Plan access around the specified drying and curing times.
Before you treat
your concrete.
A good result starts with the right product and the right preparation. Here is what to know before you begin.
Ask about your projectDo I need all three products?
No. Choose PIM+ or PIM+ Type S for the internal treatment, then finish with PTS+ after curing. PIM+ and Type S are alternatives, not two coats to apply one after the other.
Will it change the colour or make my concrete glossy?
The products are described as leaving a clear, non-glossy finish. PTS+ is intended to preserve the existing colour and texture. Test a small, inconspicuous area first, especially on decorative surfaces. The purple, yellow and blue in the illustration explain the treatments; they are not the finished colours.
Can I use it on concrete that is already sealed?
The internal treatment needs clean, permeable concrete it can absorb into. Existing sealers, paint, oil or other contamination can prevent that. Tell us what is already on the surface so we can help you identify the preparation required before treatment.
Will it repair cracks or prevent every stain?
Visible cracks need to be repaired before treatment. PIM+ and Type S provide internal protection, but are not stain blockers. PTS+ adds surface protection and easier cleaning; spills should still be cleaned promptly. The system does not replace concrete repairs.
How long should I allow for application and curing?
Allow at least three days for PIM+ or Type S to cure before applying PTS+. The PTS+ technical sheet lists two hours to air-dry and 24 hours to cure, with no foot traffic until it is air-dry. Follow the full application instructions for your surface and site conditions.
What if I want to paint or install flooring afterward?
PIM+ can be used to prime concrete before compatible paint, flooring or other coatings. If another finish is planned, confirm the complete sequence and compatibility before adding PTS+. The right preparation depends on both the concrete and the finish you intend to use.
How long does the protection last?
PIM+ and Type S are designed to form a permanent internal silicate/glass seal when correctly applied. The PTS+ surface finish has a different role and is exposed to wear. Ask about maintenance for your conditions; do not simply apply PTS+ over a dried coat, as its application guidance warns against this.
How much do I need, and what will it cost?
Coverage depends on the porosity of the concrete, so a small test area is the best starting point for quantities. Share the area to be treated, the condition of the concrete, any existing coating and its exposure to water, traffic or chemicals. We can help confirm product selection and quantities, and connect you with a distributor for pricing.
Missed us at the show?
Let’s talk concrete.

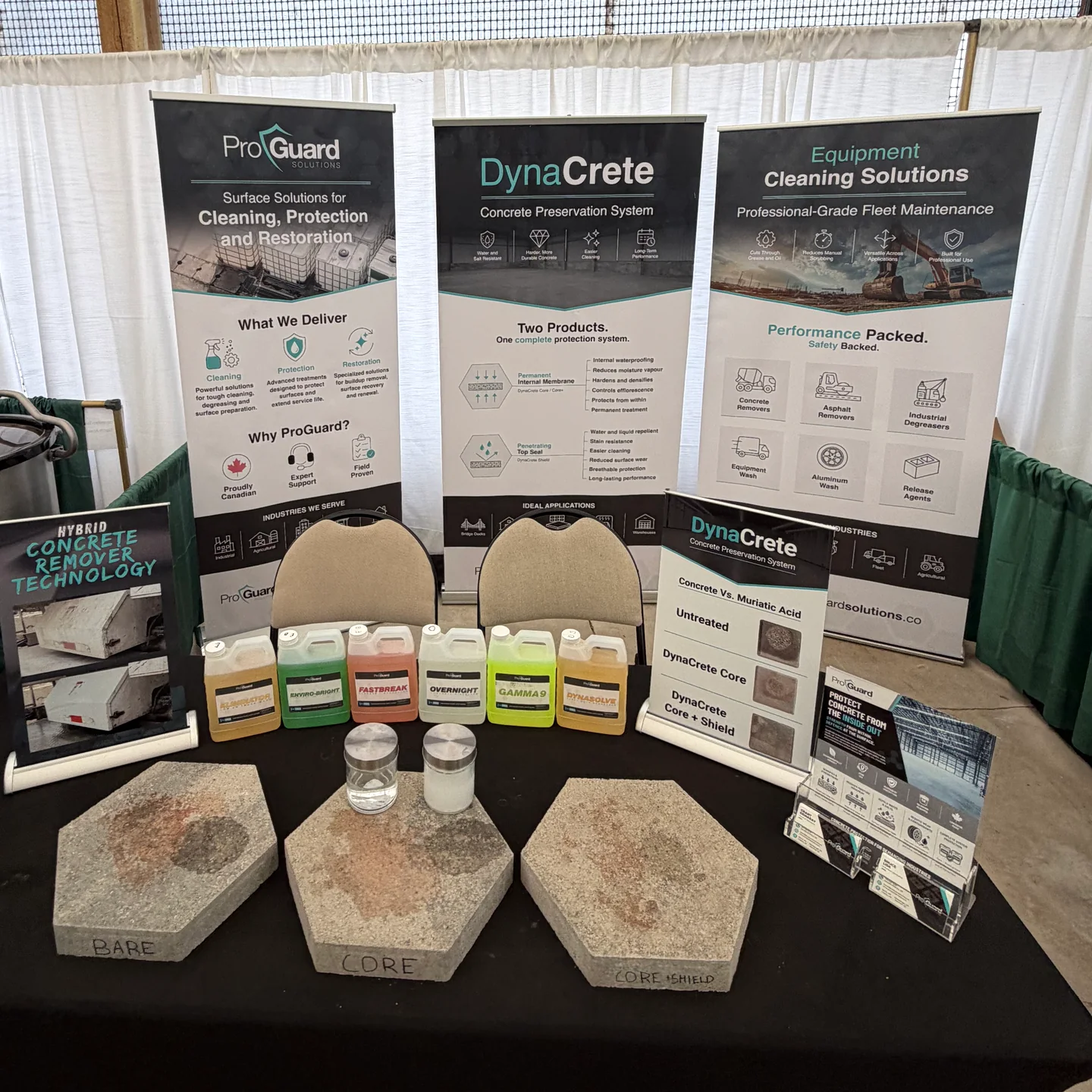

ProGuard Solutions Co. represented DynaCrete at Canada’s Outdoor Farm Show. Speak with their team about your surface, product selection, pricing and availability.
Whether you visited the booth or missed the show, keep the conversation going.
Contact ProGuard Call 1-844-616-3779Ask DynaCrete a technical question
Helpful details: surface area, concrete condition, existing coatings and how the space is used.
